Storage and Distribution Series

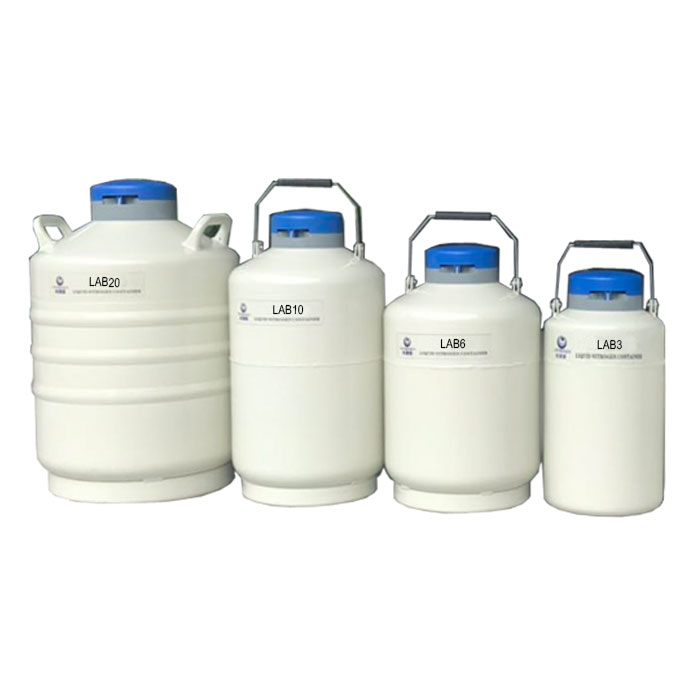

It is designed for small amount of liquid nitrogen storage and short-distance transportation. it has small neck, low liquid nitrogen evaporation rate.

  • Product Introduction
  • Product Parameter
  • Product Feature


●Product overview:


It is designed for small amount of liquid nitrogen storage and short-distance transportation. It has small neck, low liquid nitrogen evaporation rate. It is an efficient, convenient and economical way to store and distribute liquid nitrogen. It can be dumped and pressurized to discharge liquid nitrogen during operation.





Parameters Model
LAB3 LAB6 LAB10 LAB20 LAB30 LAB50

Performance
Volume  L   3 6 10 20 30 50
 Static Evaporation Rate L / day 0.12 0.12 0.12 0.12 0.12 0.23

Dimension
Caliber (mm)
50 50 50 50 50 50
Total Height (mm) 427 471 534 661 648 738
Outer Diameter (mm)  223 300 300 384 464 464
Inner Diameter 160 231 231 296 386 386
Empty Weight (kg) 3.1 4.8 5.9 9.5 12.9 15.4



Product Features :

Low evaporation loss

convenient packing

low liquid nitrogen consumption

High strength, light weight aluminum structure

Five years vacuum warranty
