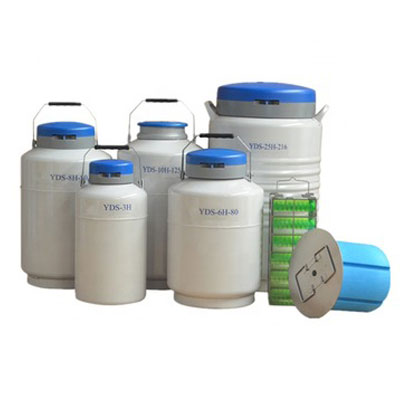

Dry shipper series

It is suitable for cryogenic environment (vapor storage at temperatures below -190℃ transportation for samples.

  • Product Introduction
  • Product Parameter
  • Product Feature


●Product overview:


It is suitable for cryogenic environment (vapor storage at temperatures below -190℃ transportation for samples. It could avoid the risk of the liquid nitrogen releasing during transportation,especially designed for short term air transport. the internal liquid nitrogen adsorbent,can absorb and save liquid nitrogen,even if the container falls down, liquid nitrogen would not pour out.It uses special stainless steel mesh to separate storage space and absorption material, to avoid liquid nitrogen absorption material mixed into the sample. mainly used for laboratory users and short-term delivery of small number samples.

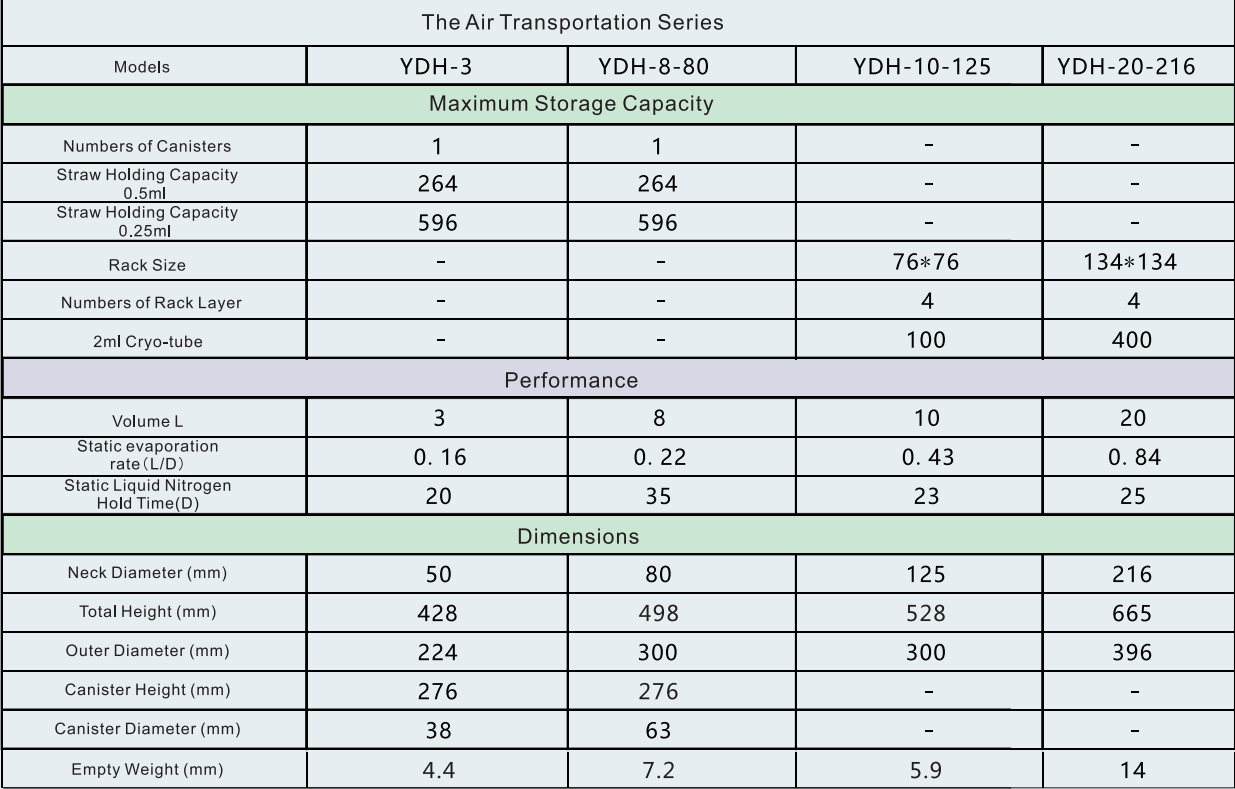

Parameters Model

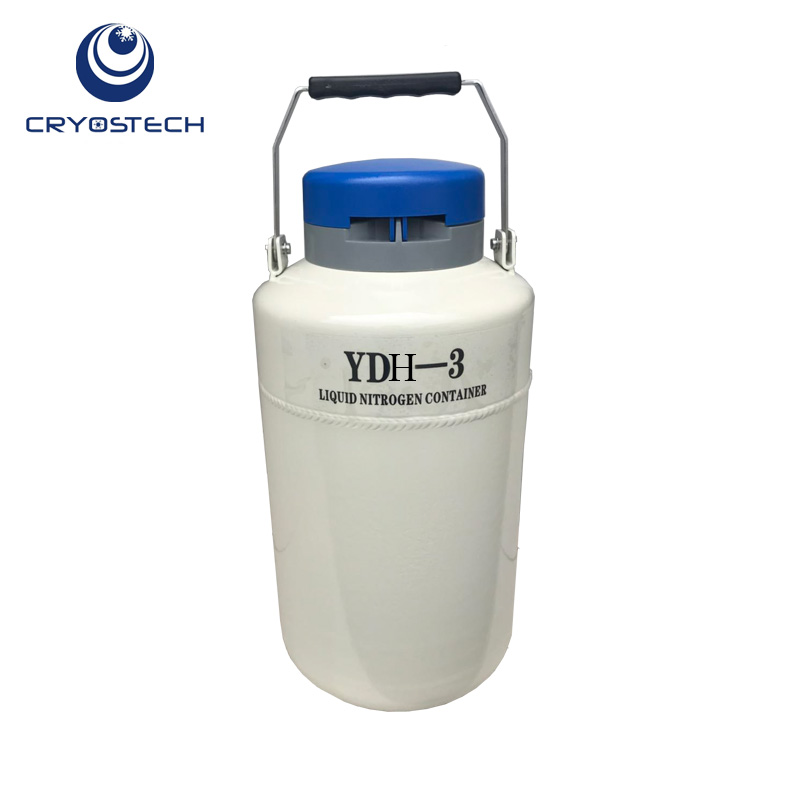

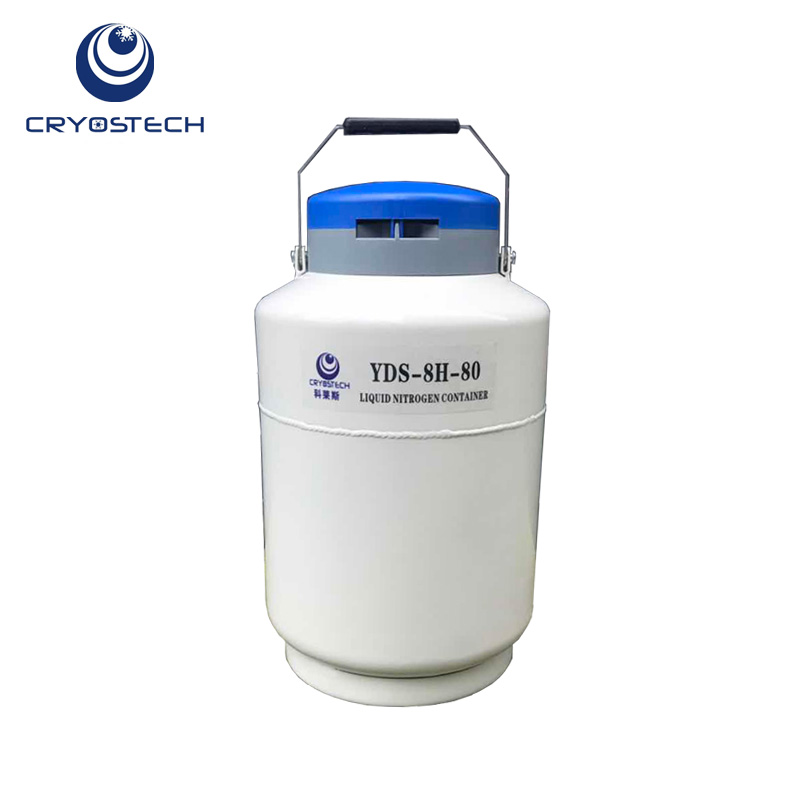

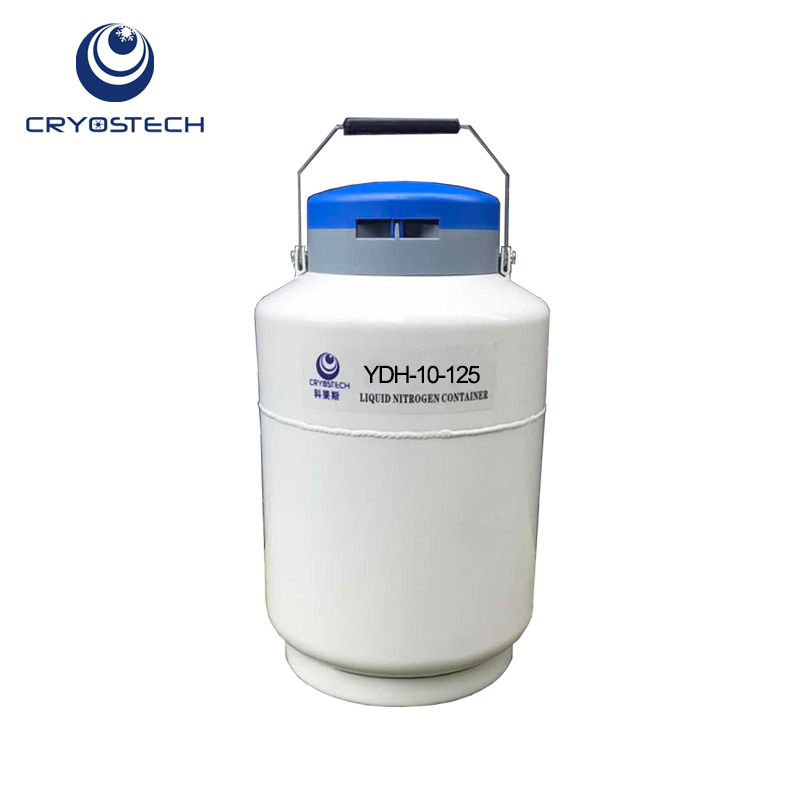

YDH-3 YDH-8-80 YDH-10-125 YDH-20-216

Maximum Storage Capacity
Canister QTY 1 1 - -
Tube capacity  0.5ml 264 264 - -
Tube capacity  0.25ml 596 596 - -

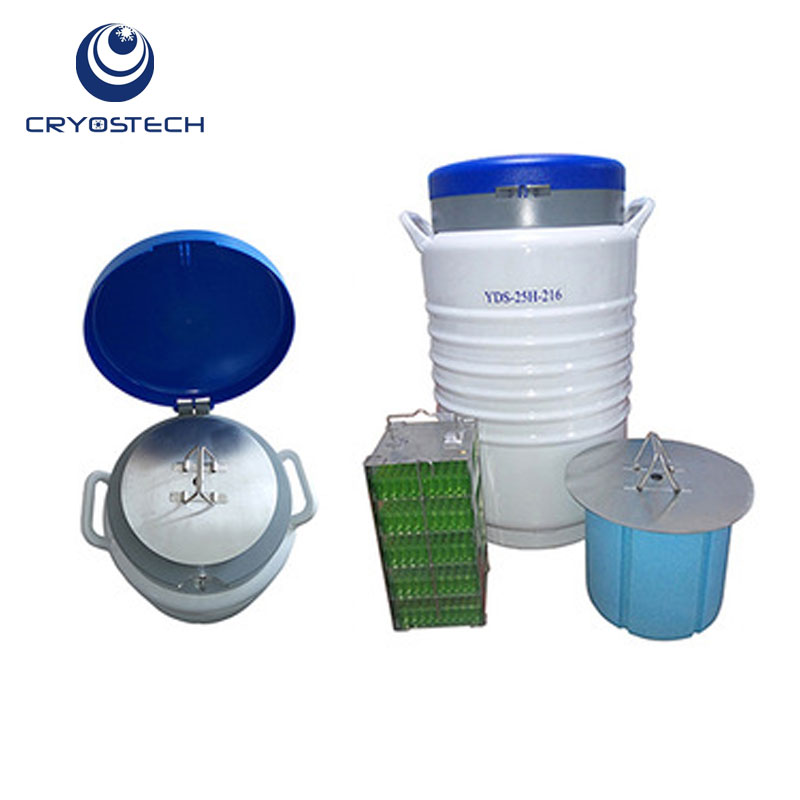

Square Canister Size - - 76*76 134*134
Square Canister Layers - - 4 4
2ml Frozen Storage - - 100 100

Performance
Volume L 3 8 10 20
Static Evaporation Rate L/day 0.16 0.22 0.43 0.84
Static Liquid Nitrogen Storage Days 20 35 23 25

Dimension
Caliber(mm) 50 80 125 216
Total Height(mm) 428 510 560 665
Outer Diameter(mm) 224 300 300 396
Canister Height(mm) 276 376 - -
Canister Diameter(mm) 38 63 - -
Empty Weight(kg) 3.5 5.8 6.9 14

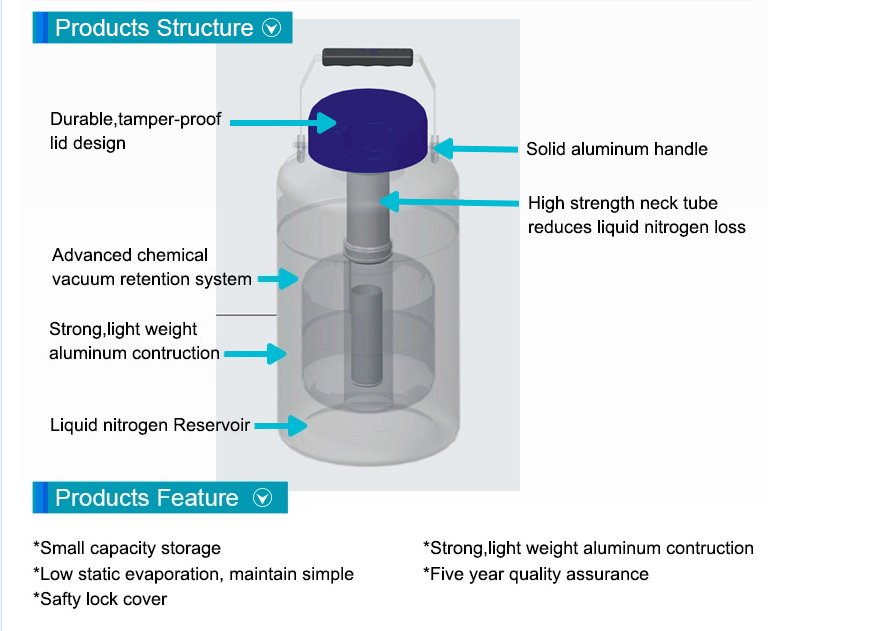

●Product Features:


Vapor cryogenic storage

Fast liquid nitrogen filling

High strength aluminum structure

Lockable lid

Five years vacuum warranty
