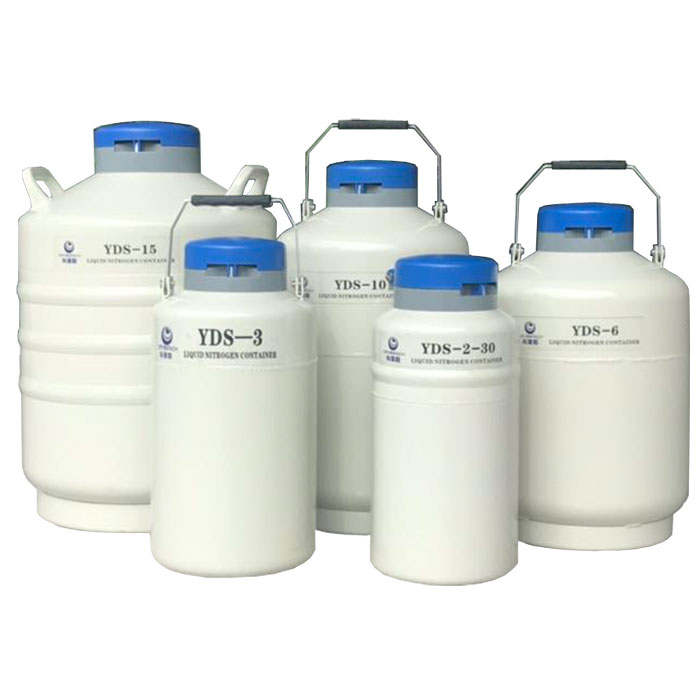

Portable Small Capacity Series

Portable small capacity series is designed for small capacity users, mainly used for breeding livestock semen frozen storage and transport of biological samples.

  • Product Introduction
  • Product Parameter
  • Product Feature


●Product overview:



Portable small capacity series is designed for small capacity users, mainly used for breeding livestock semen frozen storage and transport of biological samples.

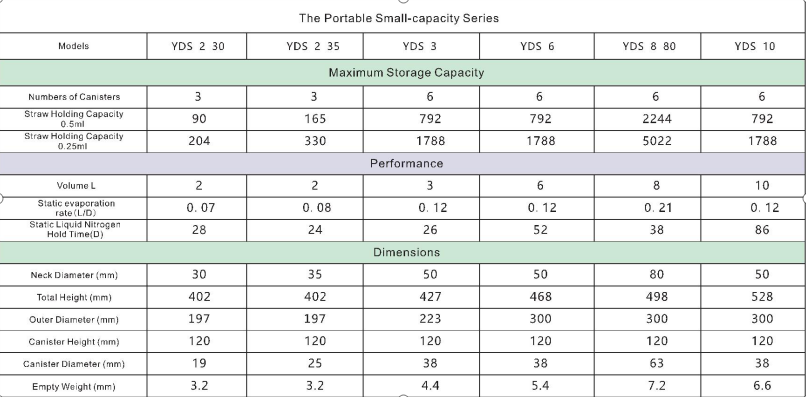

Parameters Model
YDS-2-30 YDS-2-35 YDS-3 YDS-6 YDS-8-80 YDS-10

Maximum Storage Capacity
Canister QTY 3 3 6 6 6 6
Tube Capacity  0.5ml 90 165 792 792 2244 792
Tube Capacity  0.25ml 204 330 1788 1788 5022 1788

Performance
Volume  2 2 3 6 8 10
Static Evaporation Rate L/day 0.07 0.08 0.12 0.12 0.21 0.12
Static Liquid Nitrogen Storage Days 28 24 26 52 38 86

Surface Size
Caliber(mm) 30 35 50 50 80 50
Total Height(mm) 400 428 435 482 502 552
Outer Diameter(mm) 223 204 223 300 300 300
Canister Height(mm) 120 120 120 120 120 120
Canister Diameter(mm) 19 25 38 38 63 38
Empty Weight(kg) 2.8 2.6 3.1 4.8 5.9 6

Product Features :

Suitable for small capacity liquid phase storage

Low evaporation loss

Safety lock cover

High strength, light weight aluminum structure

Five years vacuum warranty
