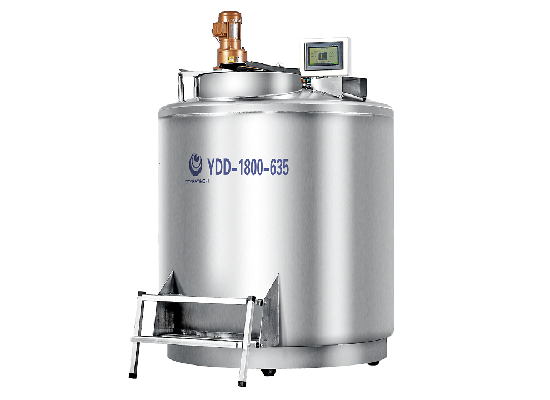

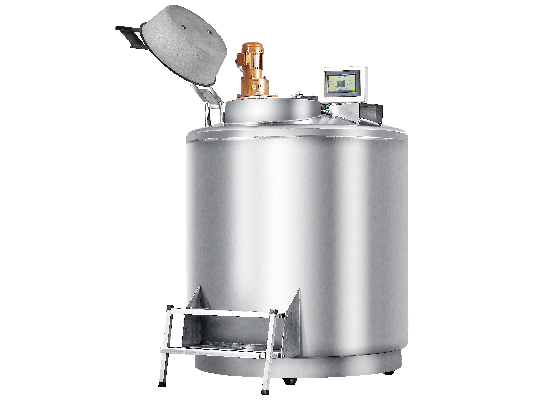

Cryobio 1800 Series

The Cryobio 1800 Series is a medium size, high-density storage that provides users full-automatic, safe and reliable.

  • Product Introduction
  • Product Parameter
  • Product Feature


● Product Overview:


The Cryobio 1800 Series is a medium size, high-density storage that provides users full-automatic, safe and reliable. Ultra-low temperature liquid nitrogen storage system can store 79950~94500 2ml cryo tubes, when specimen in vapor storage, the entire storage area temperature differences do not exceed 10℃ , and the top of frozen rack lowest temperature can reach -190 ℃.

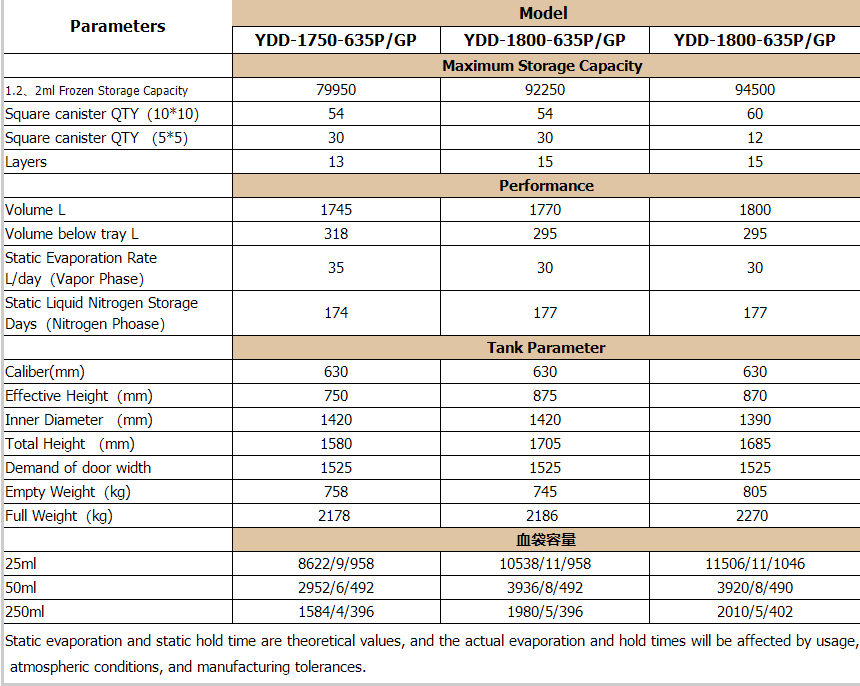

Parameters Model
YDD-1750-635P/GP YDD-1800-635P/GP YDD-1800-635P/GP

Maximum Storage Capacity
1.2、2ml Frozen Storage Capacity   79950 92250 94500
Square canister QTY(10*10) 54 54 60
Square canister QTY (5*5) 30 30 12
Layers 13 15 15

Performance
Volume L   1745 1770 1800
Volume below tray L 318 295 295
Static Evaporation Rate L/day(Vapor Phase)  35 30 30
Static Liquid Nitrogen Storage Days(Nitrogen Phoase)  174 177 177

Tank Parameter
Caliber(mm)   630 630 630
Effective Height(mm) 750 875 870
Inner Diameter (mm)   1420 1420 1390
Total Height (mm)   1580 1705 1685
Demand of door width  1525 1525 1525
Empty Weight(kg)   758 745 805
Full Weight(kg)   2178  2186  2270

血袋容量
25ml 8622/9/958 10538/11/958 11506/11/1046
50ml 2952/6/492 3936/8/492 3920/8/490
250ml 1584/4/396 1980/5/396 2010/5/402
静态蒸发量和静态保持时间是理论值,实际蒸发量和保持时间将受到使用情况、大气状况和制造公差影响。

Static evaporation and static hold time are theoretical values, and the actual evaporation and hold times will be affected by usage,

 atmospheric conditions, and manufacturing tolerances.


● Product Feature :

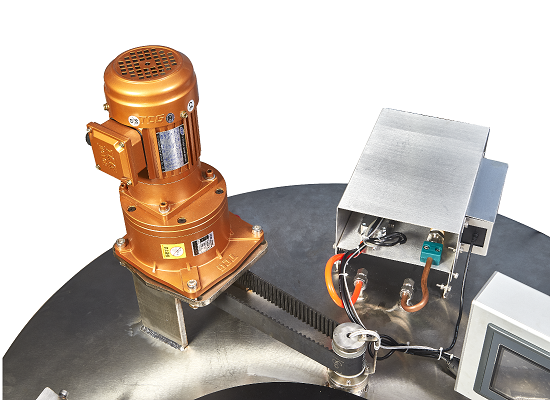

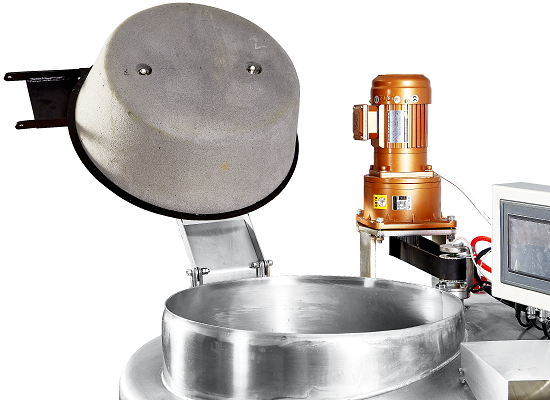

Automatic filling liquid nitrogen system and hot gas bypass function

Standard vacuum insulation pipe

Vapor storage, the top lowest temperature can reach -190 ℃

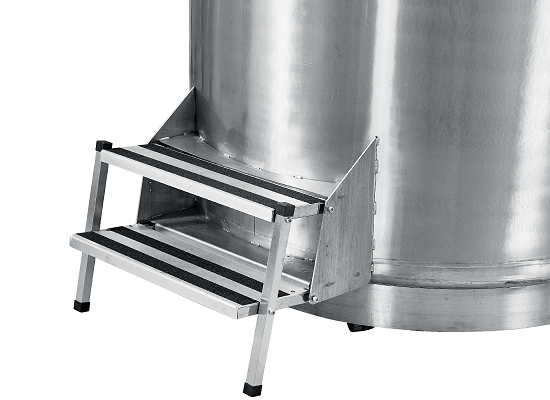

Standard double folding step

Battery backup and UPS power supply

Five-year vacuum warranty
