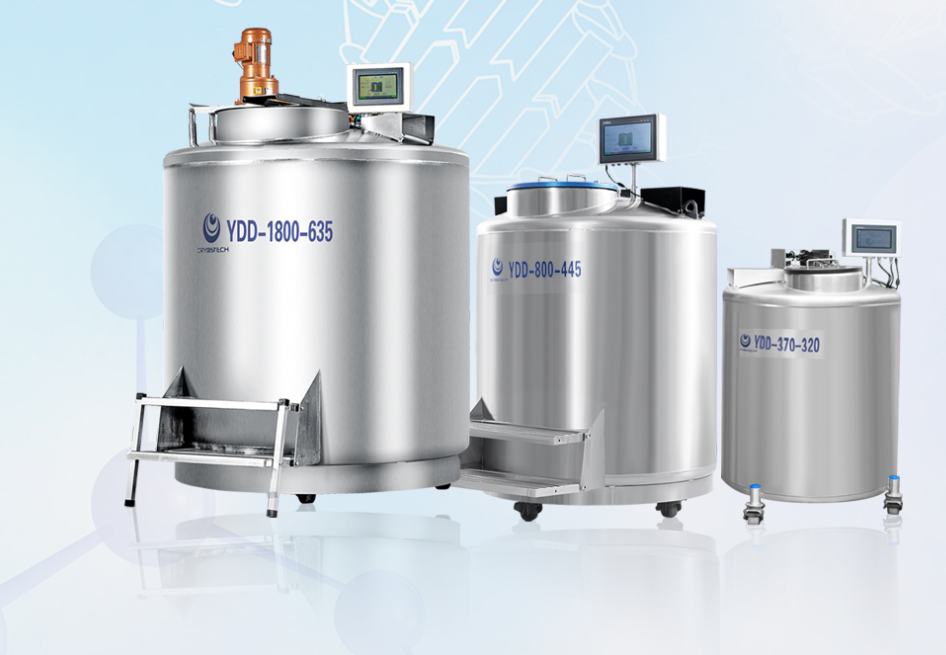

Cryobio 400 Series

The Cryobio 400 Series is a small-scale, high-density storage that provides users full-automatic, safe and reliable.

  • Product Introduction
  • Product Parameter
  • Product Feature


●Product overview:


The Cryobio 400 Series is a small-scale, high-density storage that provides users full-automatic, safe and reliable. ultra-low temperature liquid nitrogen storage system can store 15600~19500 2ml cryo tubes, when specimen in vapor storage, the entire storage area temperature differences do not exceed 10℃ , and the top of frozen rack lowest temperature can reach -190 ℃.

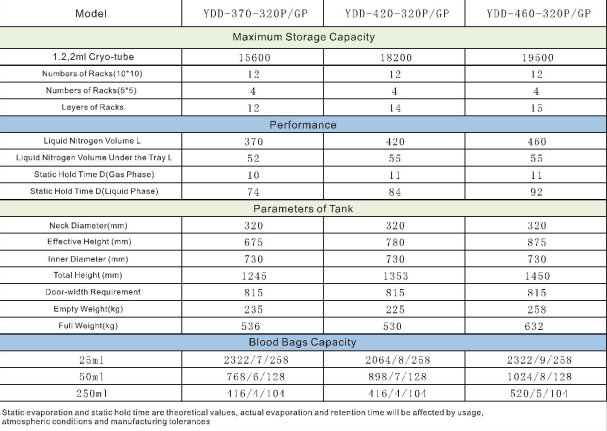

Parameters Model
YDD-370-320P/GP YDD-420-320P/GP YDD-460-320P/GP

Maximum storage capacity
1.2、2ml Frozen storage tube   15600 18200 19500
Square canister QTY(10*10) 12 12 12
Square canister QTY(5*5) 4 4 4
Square canister layers   12 14 15

Performance
Volume L   370 420 460
Liquid Nitrogen Volume below tray L 52 55 55
Static Evaporation Rate L/day(Vapor Phase)  10 11 11
Static Evaporation Rate L/day(Nitrogen Phase)  74 84 92

Container
Caliber(mm)   320 320 320
Effective High(mm) 675 780 875
Inner Diameter(mm)   730 730 730

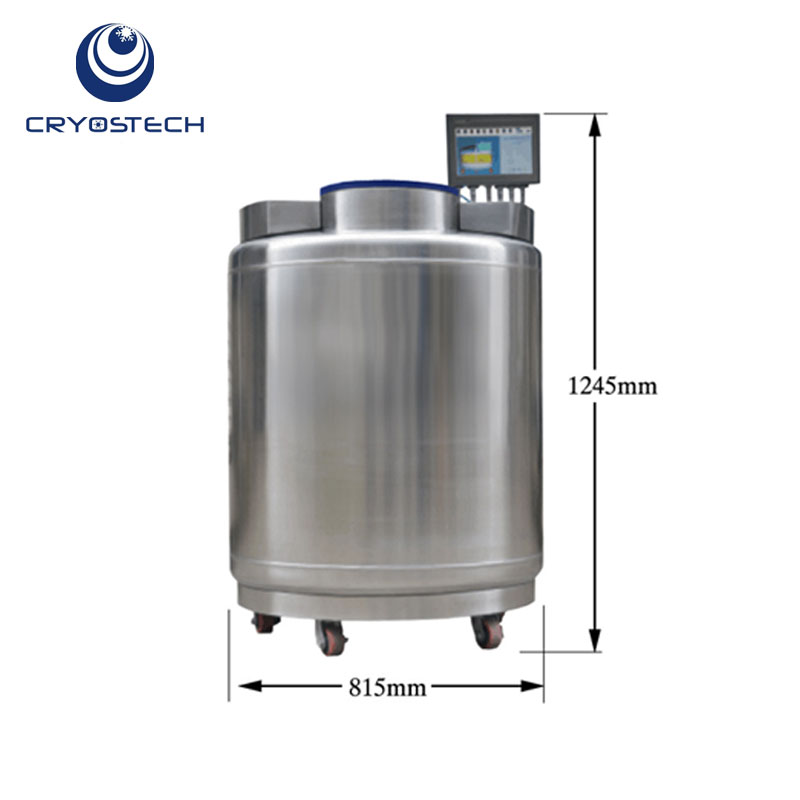

Total Height (mm)   1245 1353 1450
Demand of the door width  815 815 815
Empty Weight(kg)   235 225 258
Full Weight(kg)   536  530  632

Blood Bag Volume
25ml 1806/7/258 2064/8/258 2322/9/258
50ml 768/6/128 898/7/128 1024/8/128
250ml 416/4/104 416/4/104 520/5/104
静态蒸发量和静态保持时间是理论值,实际蒸发量和保持时间将受到使用情况、大气状况和制造公差影响。

Static evaporation and static hold time are theoretical values, and the actual evaporation and hold times will be affected by usage,

atmospheric conditions, and manufacturing tolerances.

●Performance feature:



Automatic filling liquid nitrogen system and hot gas bypass function

Standard vacuum insulation pipe

Vapor storage, the top lowest temperature can reach -190

Optional removable single or double step

Battery backup and UPS power supply

Five-year vacuum warranty
