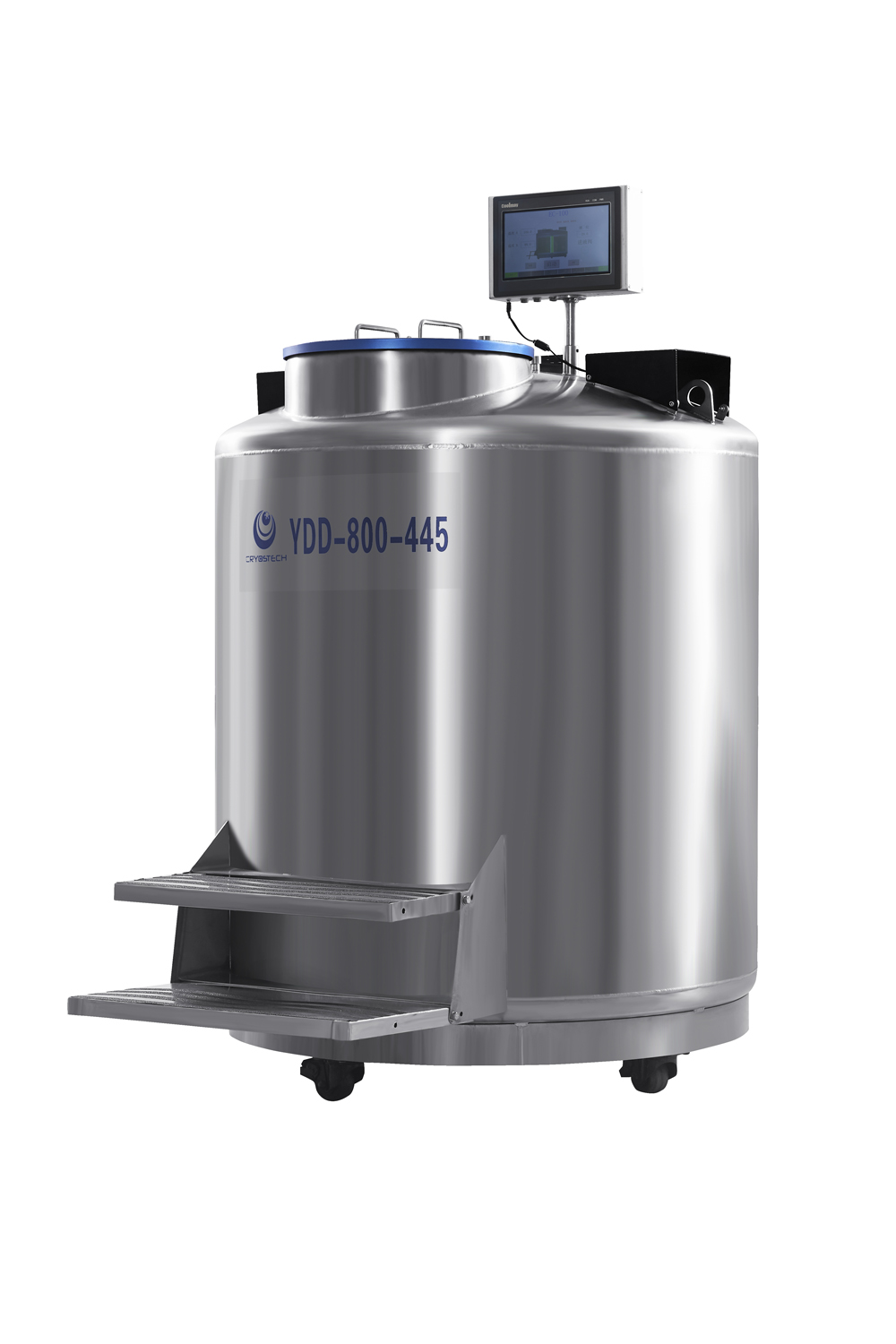

Cryobio 800 Series

The Cryobio 800 Series is a medium size, high-density storage that provides users full-automatic, safe and reliable.

  • Product Introduction
  • Product Parameter
  • Product Feature


● Product Overview:


The Cryobio 800 Series is a medium size, high-density storage that provides users full-automatic, safe and reliable. Ultra-low temperature liquid nitrogen storage system can store 36400~42000 2ml cryo  tubes, when specimen in vapor storage, the entire storage area temperature differences do not exceed 10℃ , and the top of frozen rack lowest temperature can reach -190 ℃.

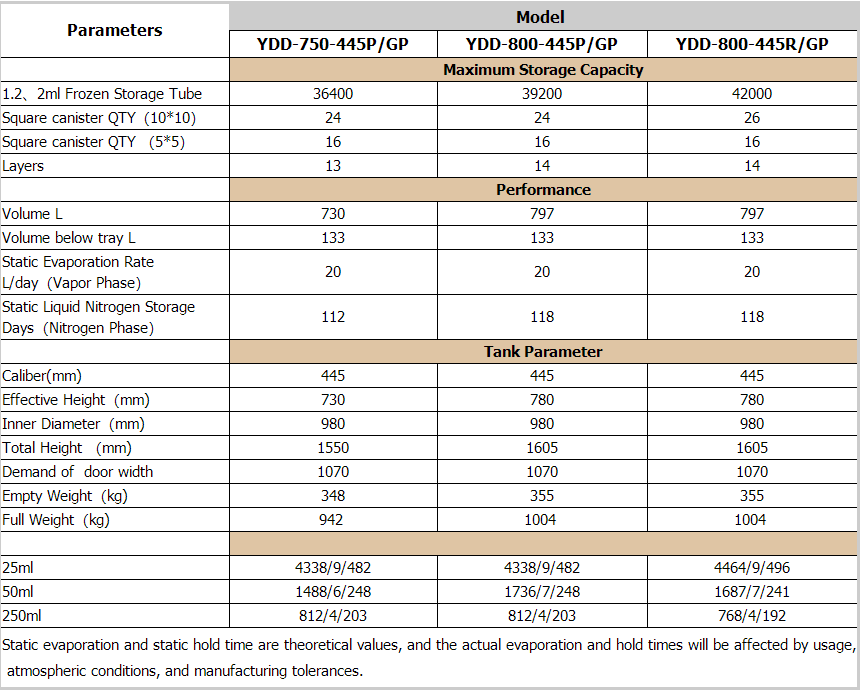

Parameters Model
YDD-750-445P/GP YDD-800-445P/GP YDD-800-445R/GP

Maximum Storage Capacity
1.2、2ml Frozen Storage Tube   36400 39200 42000
Square canister QTY(10*10) 24 24 26
Square canister QTY (5*5) 16 16 16
Layers 13 14 14

Performance
Volume L   730 797 797
Volume below tray L 133 133 133
Static Evaporation Rate L/day(Vapor Phase)  20 20 20
Static Liquid Nitrogen Storage Days(Nitrogen Phase)  112 118 118

Tank Parameter
Caliber(mm)   445 445 445
Effective Height(mm) 730 780 780
Inner Diameter(mm)   980 980 980
Total Height (mm)   1550 1605 1605
Demand of  door width 1070 1070 1070
Empty Weight(kg)   348 355 355
Full Weight(kg)   942  1004  1004


25ml 4338/9/482 4338/9/482 4464/9/496
50ml 1488/6/248 1736/7/248 1687/7/241
250ml 812/4/203 812/4/203 768/4/192
静态蒸发量和静态保持时间是理论值,实际蒸发量和保持时间将受到使用情况、大气状况和制造公差影响。

Static evaporation and static hold time are theoretical values, and the actual evaporation and hold times will be affected by usage,

 atmospheric conditions, and manufacturing tolerances.


● Product Feature :


Automatic filling liquid nitrogen system and hot gas bypass function

Standard vacuum insulation pipe

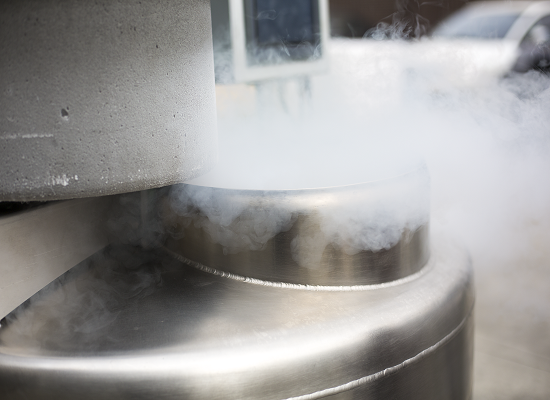

Vapor storage, the top lowest temperature can reach -190 ℃

Standard double folding step

Battery backup and UPS power supply

Five-year vacuum warranty
